Gum health: Diagnosis
Diagnosing periodontal disease
Early detection of the clinical signs of periodontal disease is key to changing its course1
Following the 2017 World Workshop on the Classification of Peridontal & Peri-Implant Diseases and Conditions, a new classification system was published, including direction on the development of a diagnostic statement for patients with periodontitis. This page provides more information on diagnosing periodontal disease and using the Basic Periodontal Examination (BPE) to assess gum health in line with the new guidelines.3
Click here to download and access the quick guide to the new classification for you and your team
History taking
Assessment of your patient’s gum health profile should begin when they first walk into your consulting room – with history taking being an important part of this process. It’s recommended that you ask open questions at first to allow for unbiased answers, and then move on to more specific questions about their symptoms.2
Suggested questions from the British Society of Periodontology:2
- Do your gums bleed on brushing or overnight?
- Are any of your teeth loose?
- Can you chew everything you want to?
- Do you have a bad taste or smell from your mouth?
- Do you suffer from pain, swelling, gumboils or blisters?
- Do you smoke?
- Is there anything else you would like to tell me?
Patient history should include any possible risk factors for periodontal disease.
Screening for periodontal disease with the Basic Periodontal Examination
The Basic Periodontal Examination (BPE) is a simple screening tool to identify periodontal clinical needs. First developed by the British Society of Periodontology in 1986, the BPE was most recently updated in 2016.2,3
- The BPE divides the dentition into six sections – ‘sextants’2,3
- All teeth in each sextant are examined and scored with a code, which is entered onto a score grid2,3
- A WHO 621 probe with a 0.5mm diameter ‘ball point’ at its tip is used for the examination2,3
Interpreting BPE scoring codes as part of the new Classification of Periodontal Diseases
The British Society of Periodontology has developed a flow chart of guidance for implementing the 2017 Classification of Periodontal Diseases to reach a diagnosis in clinical practice.4
This highlights the diagnosis as follows:
BPE codes 0/1/2 with no obvious evidence of interdental recession
<10% bleeding on probing – diagnosis of clinical gingival health
10-30% bleeding on probing – diagnosis of localised gingivitis
>30% bleeding on probing – diagnosis of generalised gingivitis
BPE code 3 with no obvious evidence of interdental recession
No pockets >4mm and no radiographic evidence of bone loss due to periodontitis – continue with pathway above to diagnose as per codes 0/1/2
Pockets >4mm remain and/or radiographic evidence of bone loss due to periodontitis – see code 4 pathway below
BPE code 4 and/or obvious evidence of interdental recession
- Ensure appropriate radiographic assessment completed
- Full periodontal assessment (including 6-point pocket chart)
Molar incisor pattern – diagnosis of periodontitis molar-incisor pattern
<30% of teeth – diagnosis of localised periodontitis
>30% of teeth – diagnosis of generalised periodontitis
The BPE scoring codes3
BPE CODE 0
No bleeding after probingNo pocketing over 3.5mmNo calculus/overhangsBlack band completely visible
BPE CODE 1
Bleeding after probingNo pocketing over 3.5mmNo calculus/overhangsBlack band completely visible
BPE CODE 2
Bleeding after probingNo pocketing over 3.5mmSupra- or subgingival calculusBlack band completely visible
BPE CODE 3
Pocketing between 3.5mm and 5.5mmSupra- or subgingival calculusBlack band partially visible
BPE CODE 4
Pocketing over 5.5mmBlack band entirely within the pocket
BPE CODE *
Furcation involvementBoth the number and the * should be recorded if a furcation is detected
Interpreting BPE scoring codes2
The British Society of Periodontology provides the following guidance for interpreting BPE scores:2
| BPE code | Guidance | Special investigations | Periodontal reassessment |
| 0 | No need for periodontal treatment | None indicated | Repeat BPE at next check-up appointment |
| 1 | Oral hygiene instruction (OHI) | Plaque and bleeding charts | Repeat BPE at next check-up appointment |
| 2 | As for Code 1, plus removal of plaque-retentive factors, including all supra- and subgingival calculus | Plaque and bleeding charts | Repeat BPE at next check-up appointment |
| 3 | As for Code 2 with root surface debridement (RSD) if required |
|
Periodontal charting of sextants scoring 3, after initial therapy |
| 4 | OHI, RSD. Assess the need for more complex treatment; referral to a specialist may be indicated |
|
Full periodontal charting before and after treatment |
| * | Treat according to BPE Code (0–4). Assess the need for more complex treatment; referral to a specialist may be indicated |
|
Full periodontal charting before and after treatment |
Table adapted from British Society of Periodontology, 20162
Detailed periodontal charting

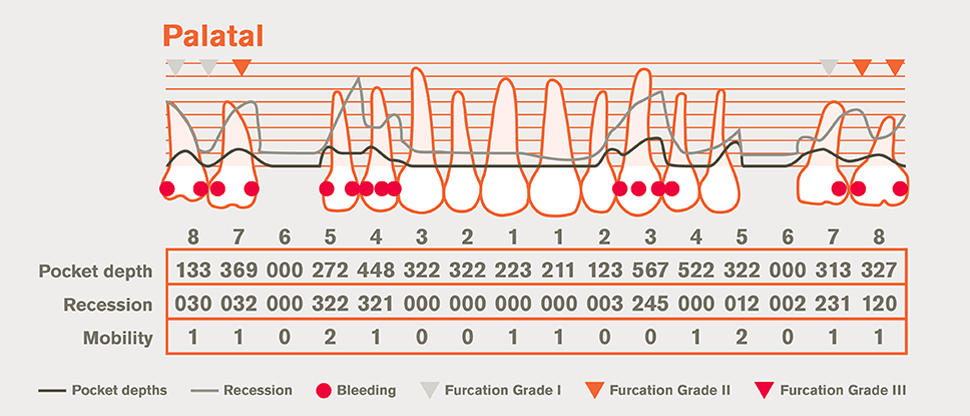

Patients with BPE codes of 3, 4 and * require detailed periodontal charting. Six-point pocket charts should record probing depth and bleeding on probing (as well as recession, mobility and furcation involvement), at a minimum of all sites ≥4mm and bleeding on probing.2
Detailed periodontal charting
Radiographs form an essential part of periodontal assessment and diagnosis, and can aid in determining the prognosis of specific teeth. Viewing the morphology of affected teeth and the extent of alveolar bone loss is also important for long-term management of patients impacted by periodontitis.2
Radiographic exposures should be:2
- In views based on the patient’s individual presentation
- Clinically justified
- Of suitable quality to provide a clear benefit to the patient
Radiographs show features of the periodontium on a horizontal bitewing film2
